Angle Steel

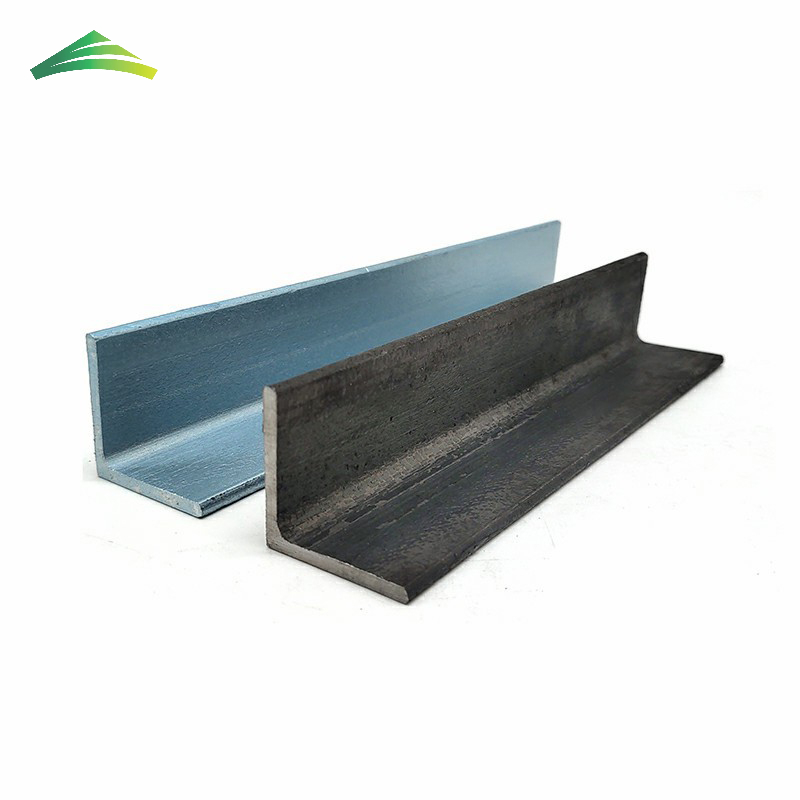

Angled joint sheet metal, also known as angle iron, is a long strip of steel with two sides perpendicular to each other and forming an angle shape. There are two types of angles: equal angle steel and unequal angle steel. The two sides of an equilateral angle steel have equal widths. Its specifications are based on edge width × Edge width × The thickness of the edge is expressed in millimeters.
Phone : +86 13854110404
Email : anna@jccopper.cc
Wechat : +86 13854110404
Whatsapp : +86 13854110404
Contact us →

Product Description

Angled joint sheet metal, also known as angle iron, is a long strip of steel with two sides perpendicular to each other and forming an angle shape. There are two types of angles: equal angle steel and unequal angle steel. The two sides of an equilateral angle steel have equal widths. Its specifications are based on edge width × Edge width × The thickness of the edge is expressed in millimeters.


Product NameAngle Beam
StandardASTM、JIS、EN、GB、BS、GB/T706-2008
GradeQ195、Q235、10#、20#、35#、45#、Q215、Q235、304、316、20Cr、40Cr、20CrMo、35CrMo、42CrMo、40CrNiMo、GCr15、65Mn、50Mn、50Cr、3Cr2W8V and so on
TypeEquilateral Angle, Unequal Angle
Side LengthEquilateral Angle:20-75mm;Unequal Angle:Long side:25-90mm、Short side:16-56mm
ThicknessEquilateral Angle:3-10mm;Unequal Angle:3-8mm
Length3000-9000mm、4000-12000m、4000-19000m、6000-19000m or customized
ApplicationWidely used in house beams, bridges, power transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, cable trench brackets, power piping, busbar bracket installation, and warehouse shelves

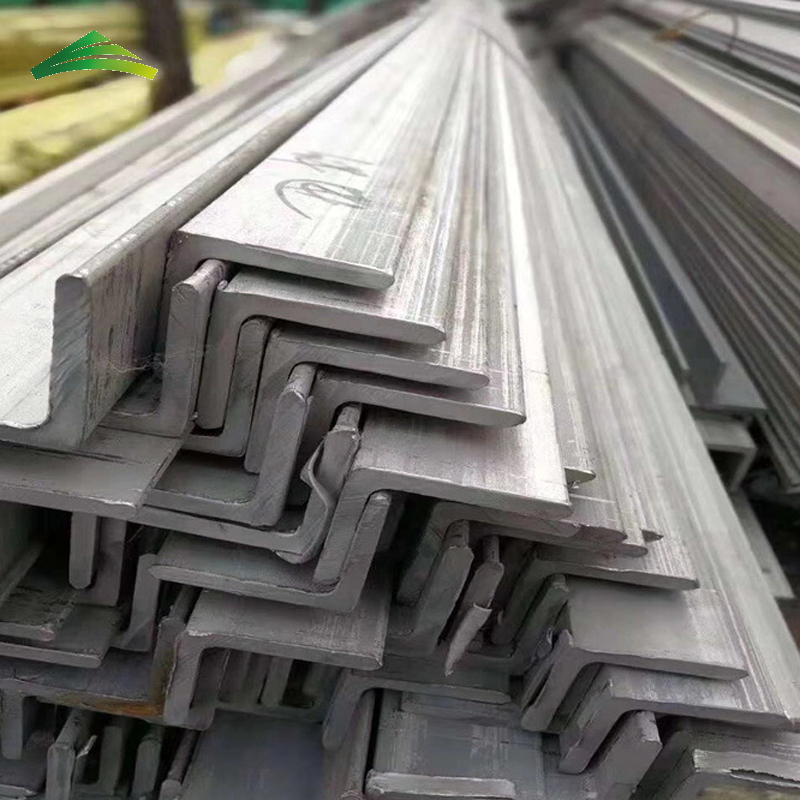

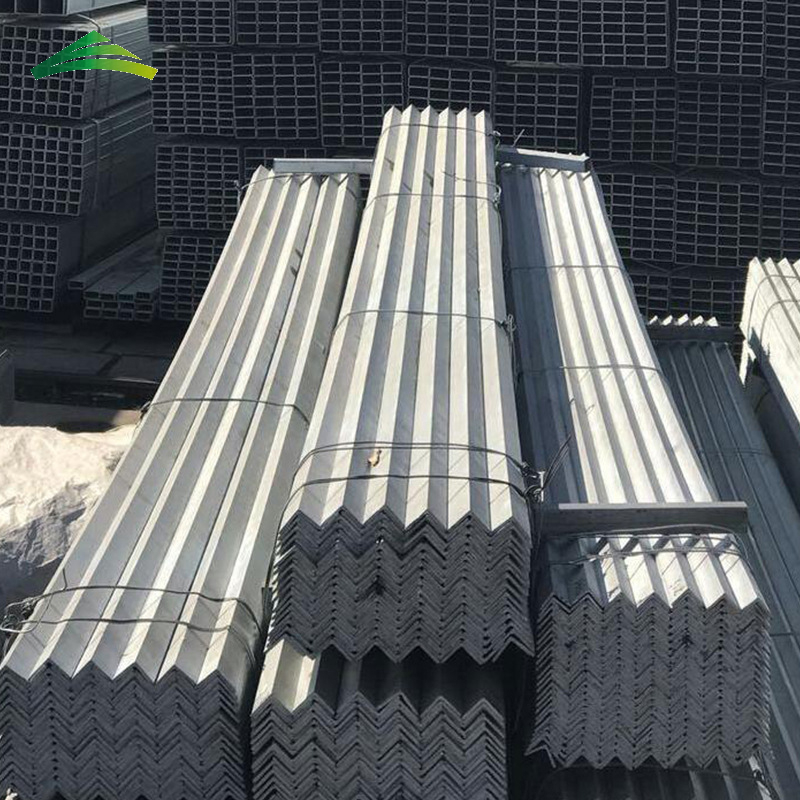

Product Show
